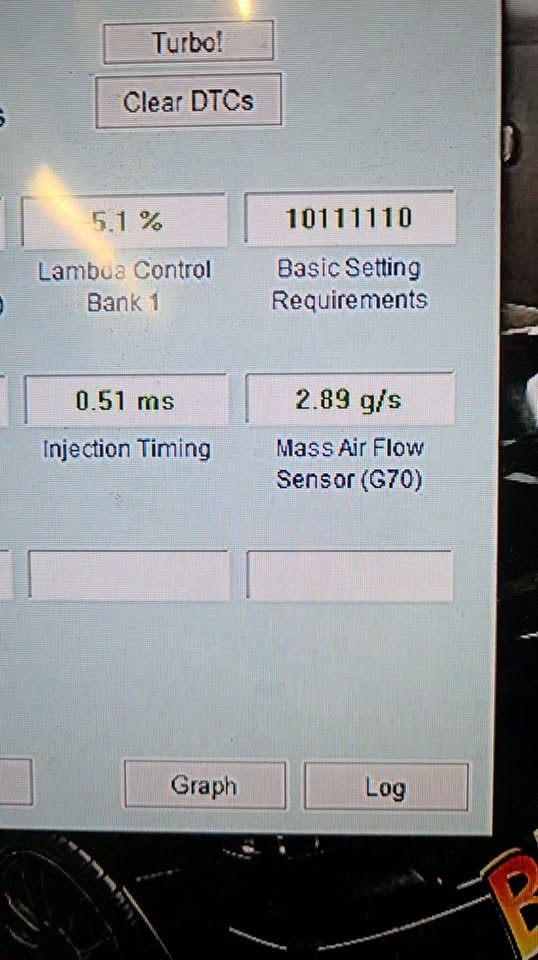

2.0TSI with running issues misfires, fuel trims off the scale. At idle the maf reading should be 2.5-2 3.7gs depending on the maf scale,runner flap etc. This one came in with short term trim at +25% and long term trim at +22%. Looking with vcds it wax easy to see what was going on with the maf reading and trims. A quick back to back test with a healthy new maf and the old faulty maf.

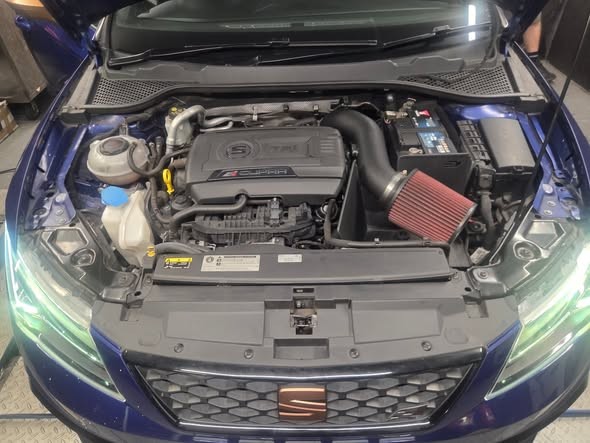

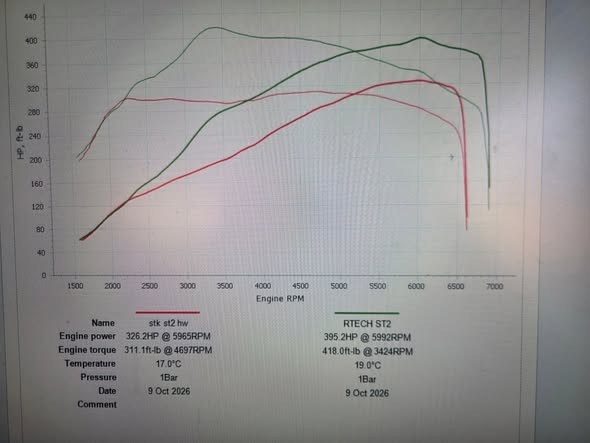

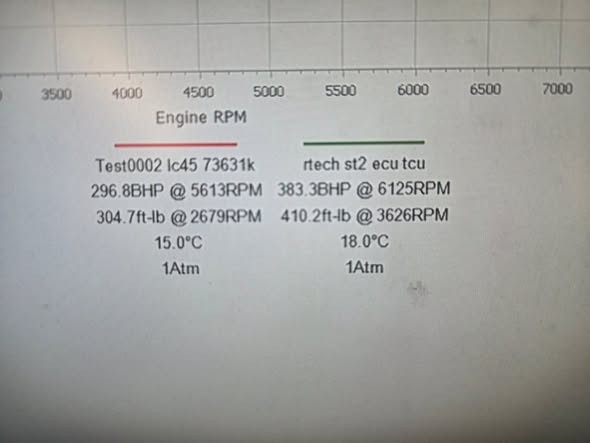

Direnza intercooler Direnza open intake. Performance downpipe Stock exhaust system. Setup with our approach to drivabilty, boost by gear, linear throttle torque demand, Enchanced ASR traction control strategy to match that huge torque band.

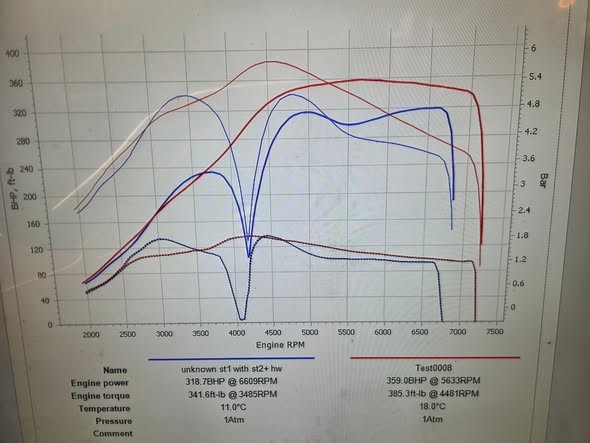

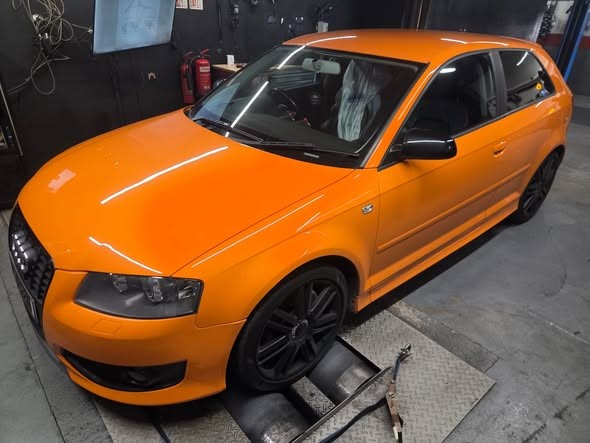

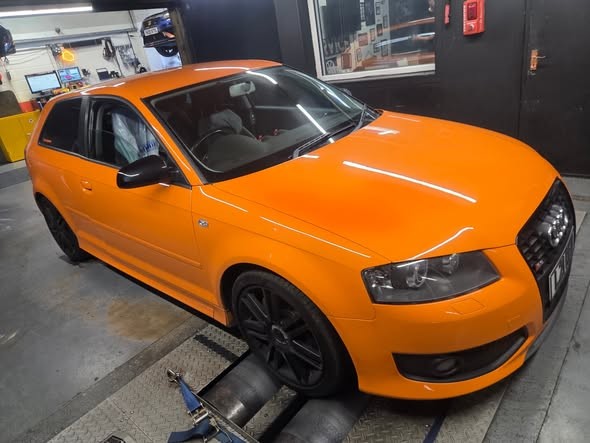

Previously tuned elsewhere, but before anyone jumps to conclusions, this wasn't a case of us fixing somebody else's rubbish map! 💩😂 Quite the opposite, actually! This Audi S3 8P came in for a fresh Stage 2+ custom dyno tuning session after the owner had made some significant changes to the hardware since it was originally tuned. The biggest change was the addition of a full turbo-back exhaust system, which can massively alter the turbocharger's boost characteristics and how the ECU needs to control it. Unfortunately, the existing calibration hadn't been updated to account for these changes. The result? 💨 Massive overboosting ⚠️ ECU intervention and throttle closure 📉 Poor boost control and compromised power delivery Now, it's very easy to look at something like this and immediately shout "CRAP MAP!" 💩 But that wouldn't be fair to the previous tuner. After reviewing the data logs and understanding the original tuning approach, it was actually clear that the previous calibration was a good one for the hardware configuration it had originally been developed around. The problem wasn't necessarily the mapping. It was that the hardware had changed, but the calibration hadn't! And this is something worth explaining. These 2.0TFSI engines and their ECUs can be particularly sensitive to hardware changes, especially when fitting a freer-flowing exhaust system to a car already running a strong Stage 1 calibration. Changing the exhaust backpressure can significantly affect turbo spool, boost response and wastegate control. A calibration that previously controlled boost perfectly can suddenly find itself struggling with aggressive boost spikes and ECU torque intervention. More hardware doesn't automatically mean more performance if the software isn't calibrated to work with it! 🔧 Our Stage 2+ tuning approach For this session, we started from scratch, developing a fresh custom calibration specifically matched to the vehicle's current hardware configuration. But the objective wasn't simply to crank up the boost and chase the biggest peak horsepower figure. We wanted to maximise the volume underneath both the horsepower and torque curves, creating strong, progressive and usable performance throughout the rev range. And just as importantly, we wanted to avoid one of the less desirable characteristics of the factory K04 turbocharger... That nasty deep compressor surge! 🌪️ The stock K04 can be particularly prone to this when pushed hard in certain areas of its operating range. It's very easy to create a big lump of torque in the midrange, but that doesn't necessarily mean you're producing the nicest, quickest or most mechanically sympathetic setup. Careful boost control, torque shaping and understanding the turbocharger's limitations are all part of getting the best from these engines. 💻 The important takeaway? Not every car that arrives with poor running characteristics has been badly mapped. Sometimes the original calibration was perfectly suitable for the hardware fitted at the time, but subsequent modifications have completely changed how the engine and turbocharger behave. That's why we prefer to look at the data, understand what's happening and establish the facts before criticising somebody else's work. A good calibration is only as good as its compatibility with the hardware it's controlling. 🔧 R-Tech Performance – Custom Dyno Tuning, Diagnostics & Calibration Development. 💪

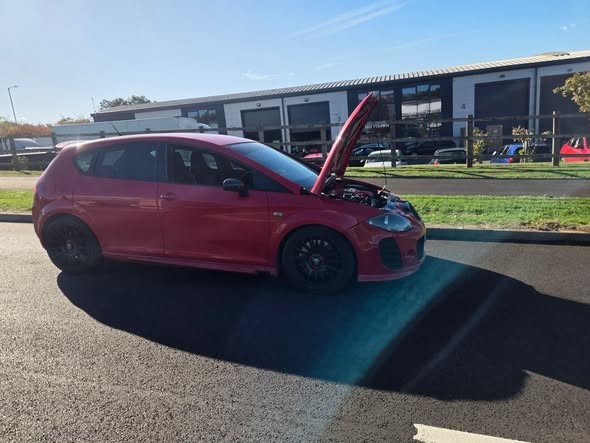

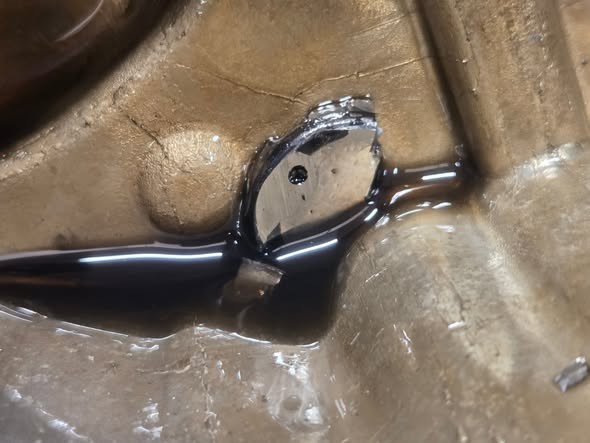

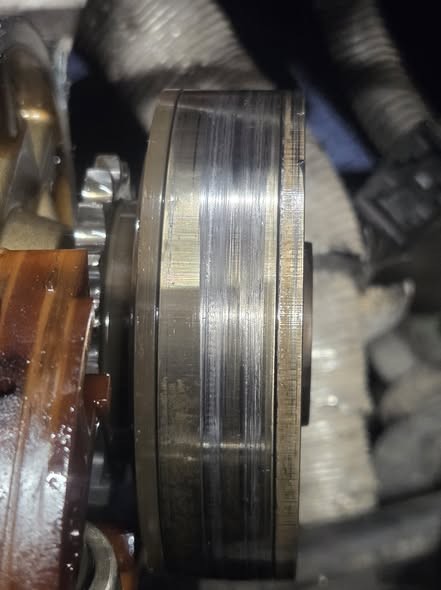

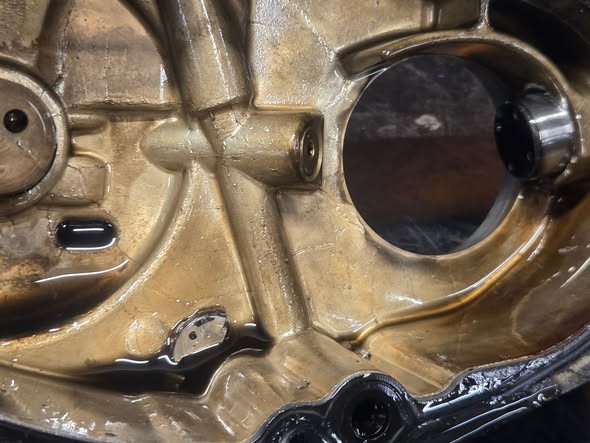

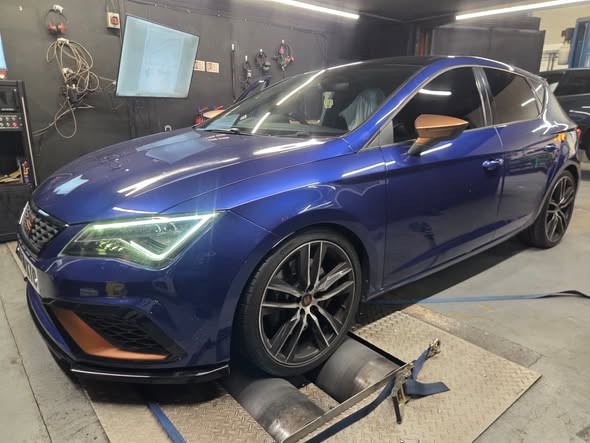

🚗 The shortest road test ever! All ¼ mile of it! 😲 Remember the Seat Leon we posted about the other day? The one that had been sold to its new owner supposedly running an upgraded HPFP and Stage 2+ tuning? Well, the story has taken another rather unfortunate turn! 🤦‍♂️ Our first head-scratching moment was discovering that the car was actually fitted with a completely stock HPFP. Why would a car supposedly running Stage 2+ software with an upgraded fuel pump have a standard pump fitted? 🤔 Well, we think we've now found the answer! After our tuning session, we headed out for a road test. Unfortunately, we managed all of about ¼ mile before the engine suddenly cut out and we coasted to a stop! 😬 Now, in situations like this, it's sometimes something relatively simple. A boost pipe popping off with the additional boost and movement during a tuning session isn't unheard of. Normally, unplugging the MAF sensor allows us to restart the engine and limp the car back to the workshop. So, MAF unplugged, ignition on, engine cranking... Absolutely nothing! 😳 However, listening to the engine turning over, we could immediately hear from the compression note that something wasn't right. This sounded like a mechanical timing issue, either on the chain or belt side. Over the last 15 years, we've experienced something similar on three previous occasions, and every time it was down to a VVT bolt snapping because an old bolt had been reused. But this time? Something completely different! 🔍 Time to investigate... Once we removed the cam cover, things started to make sense. Unfortunately, what we found wasn't pretty! The inside was littered with metallic debris, including pieces of a damaged cam follower, fragments from the fuel pump failure and bits of broken casing. From what we can establish, it appears the car had previously suffered a serious HPFP and cam follower failure. Rather than the original damage being properly investigated and repaired, it looks as though a second-hand standard HPFP and replacement cam follower had simply been fitted before the car was sold on. And all that leftover debris? Well, it appears that a fragment of the original damaged cam follower had been bouncing around inside the timing chain area before eventually becoming trapped in the chain mechanism, resulting in the chain snapping. 😬 That would certainly explain the sudden engine shutdown and the rather unusual cranking sound! It also potentially explains our original mystery of why a supposedly Stage 2+ tuned car had a stock HPFP fitted! Of course, we can't say for certain who carried out the previous repairs or exactly when the damage occurred, but the evidence we've uncovered certainly raises some questions. 🔧 The lesson here? When a mechanical component fails, especially something like a high-pressure fuel pump and cam follower, simply replacing the obviously damaged parts isn't always enough. You need to establish where the broken pieces have gone and whether any secondary damage has occurred. Otherwise, those little fragments can come back to cause some VERY expensive problems further down the line! Fortunately, there's a little bit of good news... The customer already has a replacement cylinder head! 🙏 So at least there's a way forward without having to source another one. Just another day at R-Tech Performance! Sometimes we wonder whether we're running a tuning workshop or filming the next episode of Car SOS! 😂 R-Tech Performance – Where even a ¼-mile road test can turn into a full-blown investigation! 🔧😂

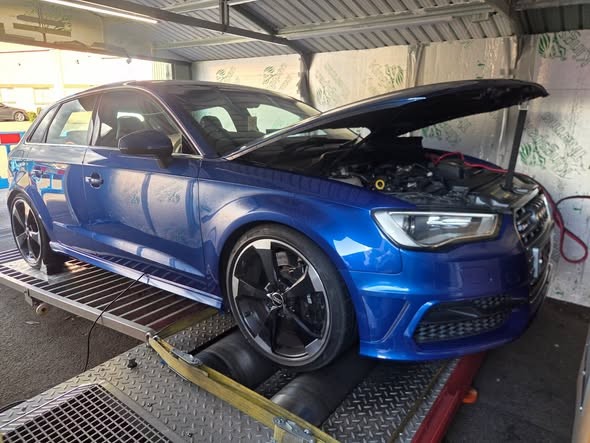

This 2014 Audi S3 8V manual came in to us already tuned elsewhere, but unfortunately the owner had been experiencing some frustrating issues with the previous software. The main complaint was random EPC warning lights and limp mode during part-throttle driving. Not exactly what you want when you're trying to enjoy your pride and joy! On top of that, we discovered the water pump was leaking, so there were a few jobs to get through before we could even think about tuning the car. 🔍 First job – finding the cause of the EPC limp mode. Rather than jumping straight in and flashing another performance map onto the ECU, we wanted to establish whether the problem was mechanical or software-related. We reverted the ECU back to completely stock software and decided to use the car for a couple of days, driving it to work and back under normal everyday conditions. The idea was simple. Try to replicate the random part-throttle EPC limp mode that the customer had been experiencing. And the result? Absolutely flawless! 👌 No EPC warnings, no limp mode, no strange behaviour. Just a perfectly well-behaved Audi S3 running on its original software. This gave us confidence that the previous calibration was responsible for the issues rather than an underlying mechanical fault. After discussing our findings with the customer, he decided to go ahead with a fresh Stage 2 custom tuning session. 🔧 The full package of work included: ✅ Diagnostics and fault finding ✅ Reverting the ECU to stock software for extended road testing ✅ Supply and fitment of a new water pump ✅ Inlet valve carbon cleaning ✅ Fuel injector testing and cleaning ✅ Haldex pump filter inspection and cleaning ✅ Stage 2 custom ECU dyno tuning session With the mechanical work completed and the previous running issues investigated, we could finally concentrate on developing the new calibration. 💻 There's more to tuning than simply making power! A car can produce impressive numbers on a rolling road but still be frustrating to drive in everyday situations. Part-throttle response, torque delivery, boost control and general drivability are every bit as important as what happens at full throttle. After all, how much time do you actually spend driving around with your foot completely flat to the floor? 😁 This is why we put so much emphasis on diagnostics, health checks and understanding how a vehicle behaves before we start increasing its performance. Sometimes the most valuable part of a tuning session is the work carried out before the car even reaches the dyno. 🔧 R-Tech Performance – Custom Dyno Tuning, Diagnostics & Fault Finding.
